Professional Grape Drying Process: How to Make Perfect Raisins with Heat Pump Technology

Drying grapes into high-quality raisins requires precise temperature and humidity control. While traditional sun-drying and basic dehydrator equipment are common, modern heat pump dryer technology has revolutionized commercial grape processing. This comprehensive guide explores the optimal工艺 (process) for drying grapes using advanced grape drying machine technology.



Why Choose a Heat Pump Dryer for Grape Drying?

Superior Quality and Efficiency

Unlike conventional dehydrator systems that can damage delicate grapes with uneven heat, a specialized grape dryer using heat pump technology offers:

• Precise Temperature Control: Maintains ideal 55-65°C range to preserve natural sugars and nutrients

• Consistent Airflow: Ensures even drying throughout the batch

• Energy Efficiency: Uses up to 60% less energy than traditional electric fruit dryer systems

• Quality Preservation: Maintains natural color, flavor, and nutritional value

Step-by-Step Grape Drying Process with Heat Pump Technology

Step 1: Raw Material Selection and Preparation

The quality of final product begins with proper grape selection:

1. Variety Selection: Choose appropriate varieties like Thompson Seedless, Flame, or Muscat

2. Quality Sorting: Remove damaged, rotten, or immature grapes

3. Washing and Cleaning: Thoroughly clean to remove dirt and residues

4. Pre-treatment (Optional): Brief dipping in alkaline solution to speed up drying process

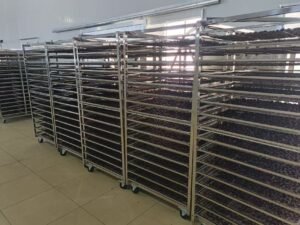

Step 2: Loading the Grape Drying Machine

Proper loading ensures optimal drying results:

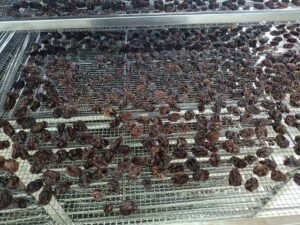

1. Tray Preparation: Spread grapes in single layers on drying trays

2. Loading Density: Maintain 8-12kg per square meter depending on grape size

3. Tray Arrangement: Ensure proper spacing between trays for air circulation

4. Machine Settings: Program the heat pump dryer with appropriate parameters

Step 3: The Drying Cycle with Heat Pump System

The grape drying machine operates in three precise phases:

Phase 1: Initial Drying (0-12 hours)

• Temperature: 55-60°C

• Humidity Control: Rapid moisture removal

• Duration: Until surface moisture evaporates

Phase 2: Main Drying (36-48 hours)

• Temperature: 60°C

• Slow, steady moisture removal from pulp

• Regular humidity adjustment

Phase 3: Final Drying (48-60 hours)

• Temperature: 60-65°C

• Final moisture reduction to 15-18%

• Quality preservation phase

Step 4: Post-Drying Processing

Completing the raisin production process:

1. Cooling: Gradually cool to room temperature

2. Quality Inspection: Sort by size, color, and quality

3. Cleaning: Remove stems and debris

4. Packaging: Vacuum seal or package in airtight containers

Key Advantages of Heat Pump Grape Dryer Technology

Compared to Traditional Methods

• vs Sun Drying: No weather dependence, no contamination, consistent quality

• vs Conventional Dehydrator: 50-60% energy savings, better quality control

• vs Hot Air Dryer: Prevents case hardening, maintains soft texture

Commercial Benefits

• Higher Profit Margins: Better product quality commands premium prices

• Lower Operating Costs: Significant energy savings

• Year-Round Production: Unaffected by weather conditions

• Scalable Capacity: Available from small 100kg to large 2000kg grape drying machine models

Technical Specifications for Optimal Results

Recommended Parameters

• Drying Temperature: 45-55°C

• Air Velocity: 0.8-1.2 m/s

• Relative Humidity: 25-40%

• Total Drying Time: ≈ 60 hours

• Final Moisture Content: 15-18%

Conclusion: Investing in the Right Grape Drying Technology

For commercial raisin producers, investing in a specialized grape dryer that uses heat pump technology represents a significant upgrade from traditional dehydrator systems. The precise control, energy efficiency, and superior product quality make modern heat pump dryer systems the ideal choice for professional grape processing.

By following this optimized drying process, producers can create premium raisins with consistent quality, extended shelf life, and enhanced market value, ensuring maximum return on investment in grape drying operations.
